TYROS PRESTRESS SYSTEM

The TYROS "AT" type anchorage system has been designed considering the increasing needs of pre-stressing systems of the Global Construction Industry and manufactured with well proven materials while maximizing the cost effectiveness. Today pre-stressing technology has taken over the conventional methods used in building Bridges, Buildings, Metro rails, Flyovers, Tunnels, etc.

Tyros Pre-stressing Systems are manufactured at the state of art facilities for development and production of mechanical and construction related components. The sophisticated machineries available at the manufacturing centres for various processes involved in production of equipments and for storage and handling, are rated as one of the best in the industry.

The Technical team of Tyros Pre-stress provides all kind of necessary assistance viz specifications of Anchorages, Anti burst reinforcement and the methodology for the pre-stressing to each contractors for the hassle free installations

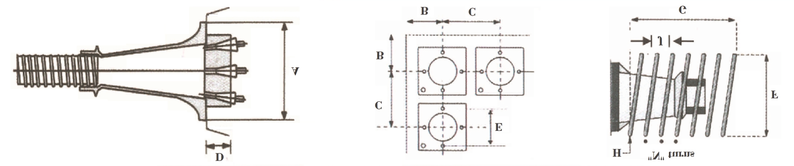

SPACING OF ANCHORAGES & ANTI-BURST REINFORCEMENT

TECHNICAL SPECS FOR TYROS ANCHORAGES

Sr Anchor Type UTS Ton 80% of UTS Duct Dia Anchor Cone Size Min Edge Distance of Anhorages Spacing Between Anhorages Pocket Depth PCD of holes Spiral Reinforce Length of Spiral Spiral Bar No of Turns Pitch of Spiral
A * A B C D E F G H N J
1 12 AT 15 400 320 90 245 200 300 62 200 250 540 16 9 60
2 19 AT 13 400 320 90 245 198 325 62 200 250 540 16 9 60
3 12 AT 13 320 256 75 207 148 260 52 175 190 480 16 8 60
4 4 AT 13 75 60 51 145 120 220 45 125 150 240 16 6 40
5 7 AT 13 131 105 51 145 120 220 45 125 150 240 16 6 40
