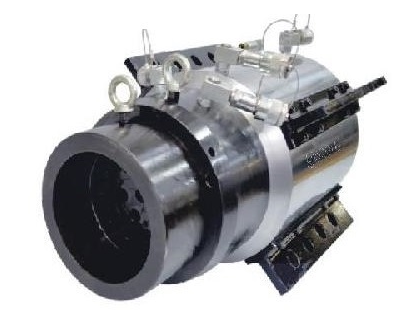

MULTI STRAND JACKS WITH WEDGE LOCK - SHORT PROFILE


CAPACITY 100-1500 TON/STROKE 200MM/WORKING PRESSURE 600 BAR

Features / Application

  • Pre-stressing & post tensioning of strands in concrete structure
  • Relief valve in return line for safety
  • Suitable calibrated power pack units & accessories available

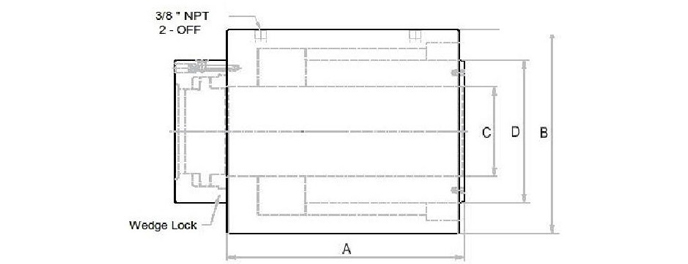

Model Capacity Capacity Stroke Maximum No. of Strands Effective Area Oil Cap. A
Closed height		 B
Cylinder OD		 C
C'hole dia.		 D
Ram dia.		 Wt.
(Approx)
(ton) (kN) (mm) 0.5" Size 0.6" Size (cm2) (cc) (mm) (mm) (mm) (mm) (kg.)
AMSJ 1020 100 1181 200 7 5 196.9 3939 405 240 90 155 110
AMSJ 2020 200 2200 200 12 7 366.8 7340 395 330 145 230 185
AMSJ 3020 300 3561 200 19 12 593.5 11870 455 400 175 280 305
AMSJ 4820 480 4675 200 31 19 779.1 15582 530 470 195 315 525
AMSJ 6820 680 7521 200 42 27 1253.5 25070 570 580 240 360 845
AMSJ 10520 1050 10576 200 61 42 1762.6 35253 615 750 305 480 1670
AMSJ 15020 1500 15781 200 - 55 2630.1 52603 700 960 340 585 3300
  • 1. Specification are subject to change due to continual improvement
  • 2. Capacity & stroke specified are maximum safe limits. As safe practice,use at 80% of rating
  • 3. Higher capacity & customized solutions on request.
