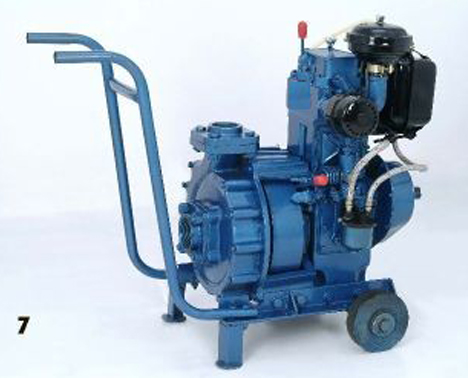

Portable Diesel Engine
Type:- LOVSON Diesel Engine is SINGLE CYLINDER, vertical, totally enclosed compression ignition, four stroke cycle, cold starting diesel engine tested as per IS 11170-1985.
Cumbustion:-DIRECT INJECTION cumbustion system places an open type cumbution chamber in a cavity in the top of the Aluminum Alloy Piston in order to minimise power robbing of gas leakage & prevent heat loss resulting for powerful performance, low fuel consumption & easy start.
Rotation:-Standard clockwise Rotation looking from flywheel end.
Lubrication:-Engines internal moving parts are partially lubricated by FORCE FEED LUBRICATION by LUBRICATING PUMP & Partially by Splash Lubrication system.
Cooling:-[A] WATER COOLED ENGINE SK SERIES :- Engine cooling is arranged by run through Water Supply. A radiator or cooling tank can be arranged if required.
[B] AIR COOLED ENGINE SKA SERIES :- Cold Air is forced to cylinder head & cylinder block by fan fitted on flywheel through stream lined cowling thus cooling engine efficiently.
Balancing:-Engine is balanced by Integrated balance weights type crankshaft. Flywheel is also balanced for longer life of moving parts.
Drive:-STANDARD power take off is from flywheel side at full speed. Power take-off from gear end at half engine speed or full Engine speed can be provided against specific requirement.
Fuel System:-Fuel is supplied to the fuel pump by gravity feed through wire mesh filter in fuel tank & efficient paper element filter in fuel filter.
| MODEL: | SK - 35 | SK - 45 | SK - 50 | SKA - 35 |
| BORE X STROKE MM: | 80 X 80L | 80 X 80L | 80 X 80L | 80 X 80L |
| DISPLACEMENT VOLUME CC: | 402 | 402 | 402 | 402 |
| RATED OUTPUT :kw/RPM AS PER IS:11170-1985:hp/RPM |
2.6/1500 3.5/1500 |
3.5/1800 4.5/1800 |
3.7/2050 5/2050 |
2.6/1500 203.5/1550 |
| SPECIFIC FUEL :g/kwh CONSUMPTION (SFC):g/hph |
245 g/kwh 180 g/hph |
251 g/kwh 184 g/hph |
||
| TORQUE AT CRANKSHAFT DRIVE kNm Kgm RPM |
0.0162 (1.67) 1500 |
0.0173 (1.79) 1800 |
0.0168 (1.74) 2050 |
0.0162 (1.67) 1500 |
| COMPRESSION RATIO: | 18:1 | 18:1 | ||
| STARTING SYSTEM: | BY HAND CRANKING FROM FUEL PUMP SIDE / ELECTRIC START OPTION AVAILABLE | |||
| FUEL: | HIGH SPEED DIESEL [HSD] | |||
| LUBRICATING OIL: | SAE-30 / SAE-40 OR ANY EQUIVALENT GRADE | |||
| LUBRICATING OIL:SUMP CAPACITY(Ltr) | 1.5 lts. | |||
| LUBE OIL CONSUMPTION: | APPX 1.0 to 1.5% OF SFC | |||
| FOUNDATION BOLT SIZE MM: | 225x120 | |||
| CRANKSHAFT CENTRE HEIGHT MM: | 152 | |||
| GOVERNING | CLASS B1 AS PER IS : 10000 (PART 7) 1980 | |||
| NET WT. KGS: | 85 | |||
| GROSS WT. KGS: | 125 | |||
| WOODEN CASE SIZE MM: | 660 X 520 X 750 | |||
