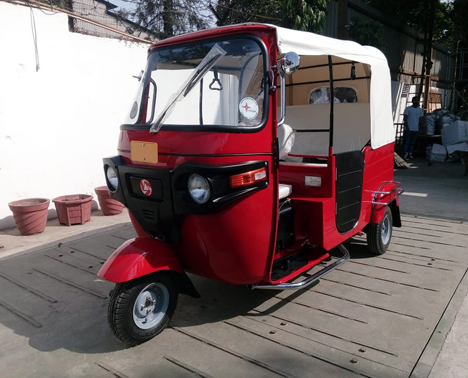

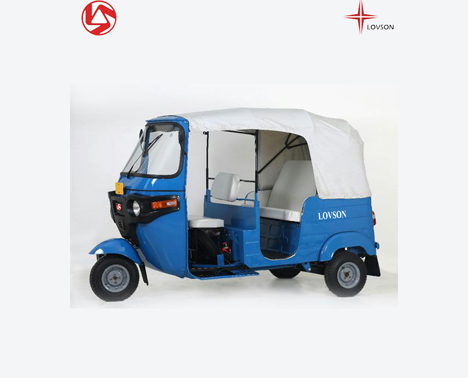

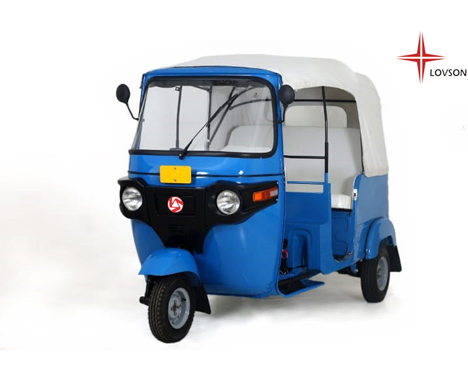

Petrol Auto Rickshaw
SPECIFICATIONS
SPECIFICATIONS
| Type | 4 stroke force air cooled Single cylinder engine |
| Bore, MM | 57 |
| Stroke, MM | 68 |
| Engine Displacement, CC | 198.75 cm3 |
| Maximum Net Power, HP AT R/Min | 7.62 KW @6000 rpm/min |
| Maximum Net torque | 16.7 Nm @4500 rpm |
| Ignition System | CDI |
| Fuel | Petrol |
| Lubrication | Separator oil pump |
| Starting | Electric Start + Hand Lever option |
| Transmission | 4 Forward + 1 Reverse |
| Fuel Tank Capacity, Litre | Full 8 Litters |
| Clutch | Wet Multiplace type |
| Electricals: | |
| System | 12 V, DC |
| Battery | 12V 14Ah / 12v 32Ah |
| Head Lamp Twin | 35/35 W |
| Tail Lamp / Stop Lamp | 5/10 W |
| Side Indicator Lamp | 10w |
| Horn | 12V, DC |
| Chassis | Monocoque |
| Dimensions | |
| Length | 2000 MM |
| Width | 1300 MM |
| Height | 1704 MM |
| Wheel Base | 2000 MM |
| Ground Clearance | 200 MM |
| Turning Circular Diameter | 5.8 M |
| Weights In KG. | |
| KERB Weight | 290 |
| Maximum Total Weight | 540 |
| Maximum Payload | 250 |
