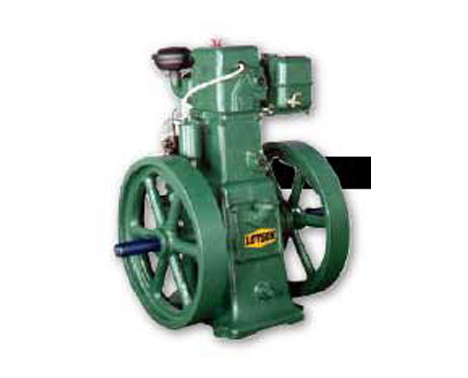

SL Series Engines
Type:- LOVSON Diesel Engine is SINGLE CYLINDER, vertical, totally enclosed compression ignition, four stroke cycle, cold starting diesel engine tested as per IS 11170-1985.
SL SERIES engines are generally available with Tapper Roller Bearing fitted on crankshaft. There is an option of Bimetal bush bearings too.
Cumbustion:-INDIRECT INJECTION : cumbustion takes place in an open cavity in the cyl head above the Piston.
Rotation:-Standard clockwise rotation when observed from flywheel end, keeping Air & Exhaust on the left hand side.
Lubrication:-In case of TAPPER ROLLER BEARING engine the engine’s internal moving parts are partially lubricated by SPLASH SYSTEM of lubrication.
In case of Bimetal bush bearing, the main bush bearings are lubricated by force through a plunger type lubricating oil pump and other moving parts by Splash Lube System.
Cooling:- Engine’s cooling is arranged by run through water supply. A Radiator or Cooling tank can be arranged if required.
Drive:- Standard power take off is from left hand side flywheel end when viewed from Air & Exhaust side.
Fuel System:-Fuel is supplied to the fuel pump by gravity feed through wire mesh filter in fuel tank & efficient paper element filter in fuel filter.
| MODEL: | SL-6 | SL-8 | SL-10/SLC-10 | SLC-10 TIGER | SLC-10 SUMO | SLC-12 SUMO |
| BORE X STROKE MM: | 114.3x139.7L | 114.3x139.7L | 120x139.7L | 120x139.7L | 127x139.7L | 127x139.7L |
| DISPLACEMENT VOLUME CC: | 1434 | 1434 | 1580 | 1580 | 1770 | 1770 |
| RATED OUTPUT :kw/RPM AS PER IS:11170-1985:hp/RPM |
4.40/650 (6/650) |
5.90/850 8/850 |
7.35/1000 10/1000 |
7.35/1000 10/1000 |
7.35/900 10/900 |
8.80/1000 12/1000 |
| SPECIFIC FUEL :g/kwh CONSUMPTION (SFC):g/hph |
268 g/kwh 197 g/hph |
268 g/kwh 197 g/hph |
268 g/kwh 197 g/hph |
268 g/kwh 197 g/hph |
255 g/kwh 188 g/hph |
255 g/kwh 188 g/hph |
| TORQUE AT CRANKSHAFT DRIVE kNm Kgm RPM |
0.064 (6.61) 650 |
0.065 (6.74) 850 |
0.069 (7.17) 1000 |
0.069 (7.17) 1000 |
0.077 (7.96) 900 |
0.083 (8.60) 1000 |
| COMPRESSION RATIO: | 16:1 | 16:1 | 17:1 | 17:1 | 17:1 | 17:1 |
| STARTING SYSTEM: | BY HAND CRANKING FROM FUEL PUMP SIDE / ELECTRIC START OPTION AVAILABLE | |||||
| FUEL: | HIGH SPEED DIESEL [HSD] | |||||
| LUBRICATING OIL: | SAE-30 / SAE-40 OR ANY EQUIVALENT GRADE | |||||
| LUBRICATING OIL:SUMP CAPACITY(Ltr) | 5 lts. | |||||
| LUBE OIL CONSUMPTION: | APPX 1.0 to 1.5% OF SFC | |||||
| FOUNDATION BOLT SIZE MM: | 330x330 | |||||
| CRANKSHAFT CENTRE HEIGHT MM: | 317.5 | |||||
| GOVERNING | CLASS B1 AS PER IS : 10000 (PART 7) 1980 | |||||
| NET WT. KGS: | 315 | 335 | 350 | 375 | 380 | 380 |
| GROSS WT. KGS: | 415 | 435 | 450 | 475 | 480 | 480 |
| WOODEN CASE SIZE MM: | 1050 x 750 x 1150 | |||||
