Auto Rickshaw

The ubiquitous three wheeler or Autorickshaw which are commonly also known as Tuk-tuks have been backbone for passenger commuting in the weaker economies of the world . They represent the common man in daily life , be it commuting , transporting , or hauling freight . The 3 wheelers provide the a means of livelihood for many because they are very inexpensive and do not require a huge investment , easy and cheap to maintain and their great milage giving ability consumes very little fuel for their running .

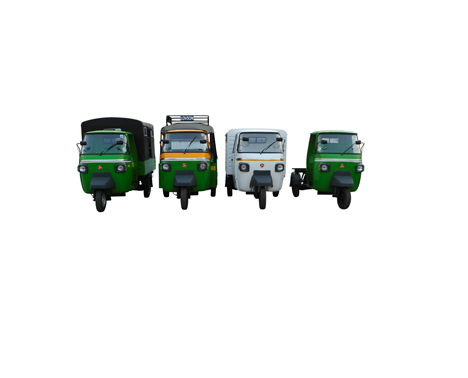

LOVSON offers a wide range of 3 wheelers such as 3+1 , 5+1 and 6+1 passenger vehicles , pick-up and delivery van models and other utility models in both petrol and diesel variants .

Our petrol variants can further be converted to CNG and LPG vehicles by fitting them with such kits.

Our dedicated website www.auto-rickshawl.com will be give you a complete insight into our range of these very useful vehicles.

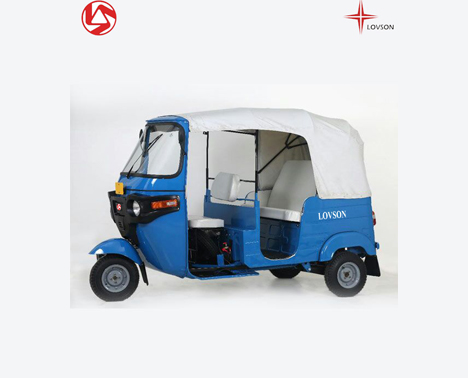

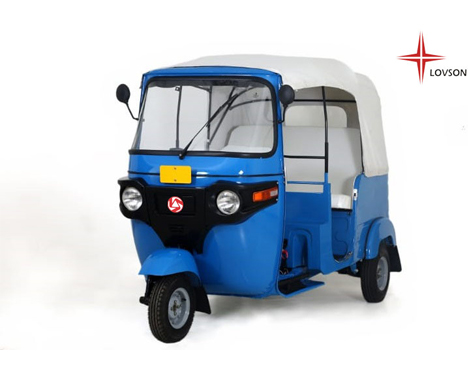

Petrol Auto Rickshaw


1234

SPECIFICATIONS
SPECIFICATIONS
Type 4 stroke force air cooled Single cylinder engine
Bore, MM 57
Stroke, MM 68
Engine Displacement, CC 198.75 cm3
Maximum Net Power, HP AT R/Min 7.62 KW @6000 rpm/min
Maximum Net torque 16.7 Nm @4500 rpm
Ignition System CDI
Fuel Petrol
Lubrication Separator oil pump
Starting Electric Start + Hand Lever option
Transmission 4 Forward + 1 Reverse
Fuel Tank Capacity, Litre Full 8 Litters
Clutch Wet Multiplace type
Electricals:
System 12 V, DC
Battery 12V 14Ah / 12v 32Ah
Head Lamp Twin 35/35 W
Tail Lamp / Stop Lamp 5/10 W
Side Indicator Lamp 10w
Horn 12V, DC
Chassis Monocoque
Dimensions
Length 2000 MM
Width 1300 MM
Height 1704 MM
Wheel Base 2000 MM
Ground Clearance 200 MM
Turning Circular Diameter 5.8 M
Weights In KG.
KERB Weight 290
Maximum Total Weight 540
Maximum Payload 250

1234

SPECIFICATIONS

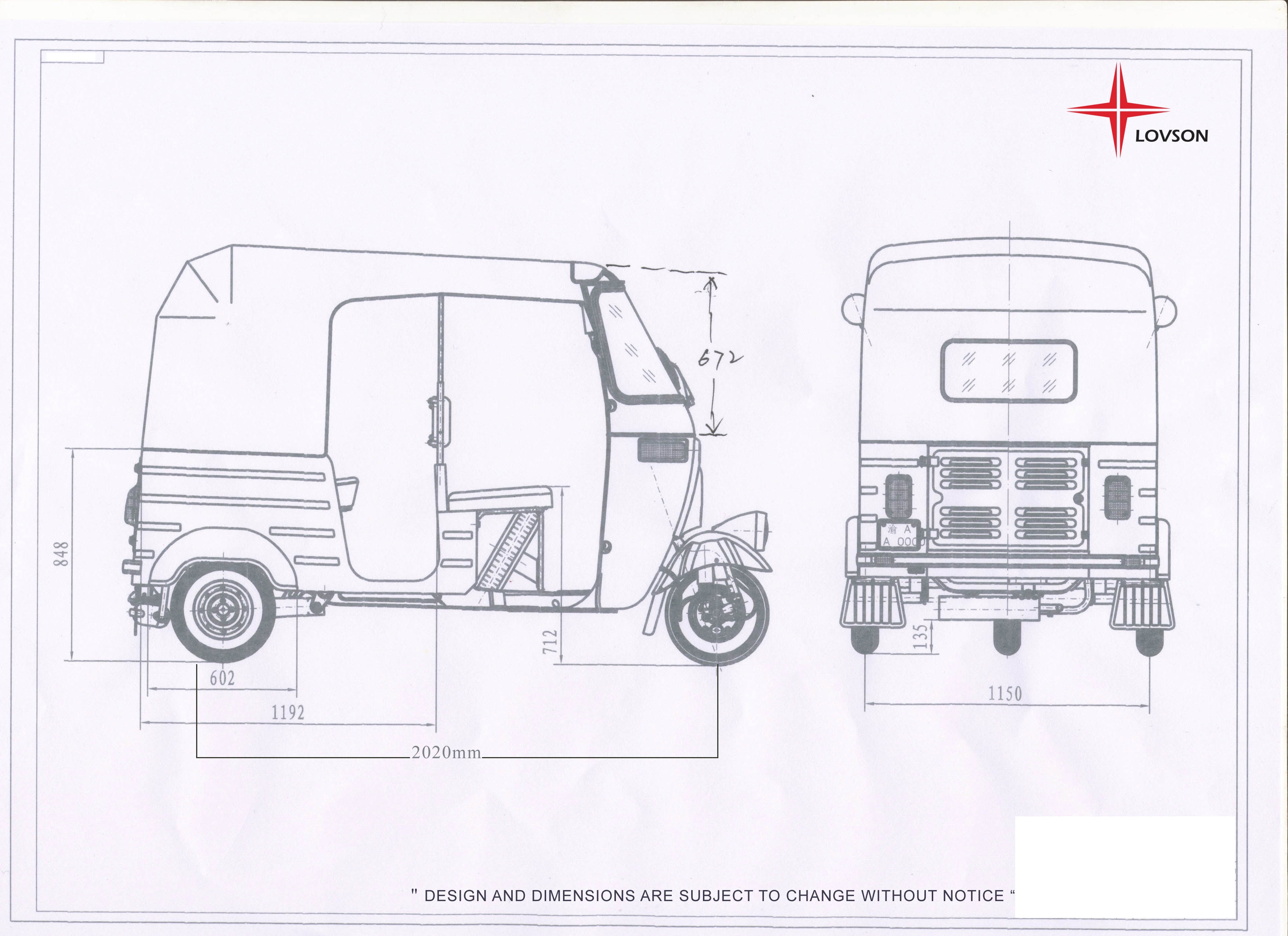

OVERALL DIMENSIONS
SPECIFICATIONS
Type 4 stroke force air cooled Single cylinder engine
Bore, MM 57
Stroke, MM 68
Engine Displacement, CC 173.52
Maximum Net Power, HP AT R/Min 7.62ps @6000 rpm
Maximum Net Torque KG.M at/MIN 12.0 @4500 rpm
Ignition System CDI
Fuel Petrol
Lubrication Pressure/Splash System
Starting Electric Start + Hand Lever
Transmission 4 Forward + 1 Reverse
Fuel Tank Capacity, Litre Full 7.5 litre in reserve-1.5 litre
Clutch With multiplate with oil bath
Electricals:
System 12 V, DC
Battery 32 A.H
Head Lamp Twin 35/35 W
Tail Lamp / Stop Lamp 5/10 W
Side Indicator Lamp 10w
Horn 12V, DV
Clutch Type Wet Multidisc Type
Electrical System 12v dc
Head Light 35/35 w
Horn 12v dc
Dimensions
Length 2665MM
Width 1345MM
Height 1730MM
Wheel Base 2020MM
Ground Clearance 230MM
Turning Circular Diameter 5820MM
Kerb Weight 290kg
Maximum Total Weight 650kg
Maximum Payload 360
Maximum speed 50 KMPH
Chassis & Body:
Suspension:

Front: Reinforced welded steel Tublar Swing arm with anti drive link, double acting hydraulic shock absorber & helical coil compression spring


Rear: Swing arm with, double actio hydraulic shock absorber & helical coil compression spring
Brakes:

Front: Hydraulic Expanding shoe type size 170mm*29.5mm wide


Rear: Hydraulic Expanding shoe type size 170mm*29.5mm wide
Tyres:

Front: 4.00-8, 4 PR


Rear: 4.00-8, 4 PR
OVERALL DIMENSIONS
Length 2850MM
Width 1320MM
Height 1750MM
Wheel Base 2020MM
Ground Clearance 230MM
Turning Circular Diameter 5820MM

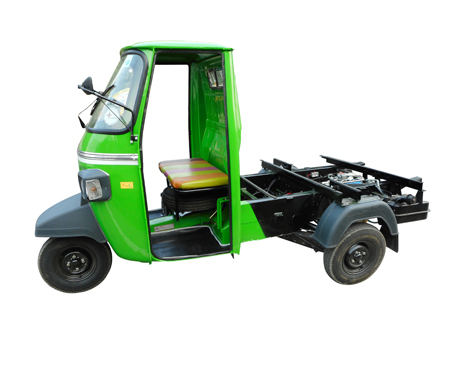

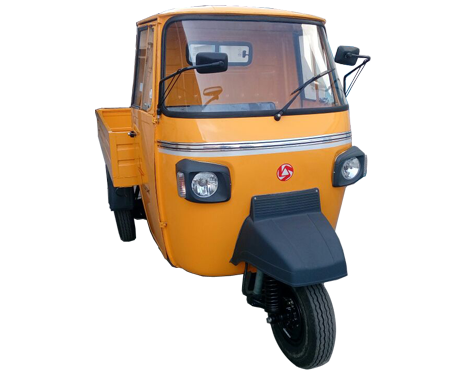

Pickup Standard


1234

SPECIFICATIONS
OVERALL DIMENSIONS
SPECIFICATIONS
Engine-Model No. 395cc BS III Diesel 435cc BS III Diesel
Type FOUR-STROKE, AIR COOLED, DIESEL FOUR-STROKE, AIR COOLED, DIESEL
Bore.MM 82 86
Stroke.MM 68 75
Maximum Net Power, HP AT R/Min 7.6 HP @3600 rpm 7.6 HP @3600 rpm
Maximum Net Torque, KG.M AT/MIN 17 Nm @2200 rpm 18 Nm @2400-2200 rpm
Engine Type Forced Air Cooler
Displacement 395 cc 436 cc
No. of Cylinders 1
Compression Ratio 18:1 19:1
Extra Specification
Ignition system CDI
Starting Electrical Start + Manual
Clutch Type Wet multidisc type
Transmission 4 Forward + 1 Reverse
Fuel tank capacity, litre Full 7.5 litres in reverse - 1.5 litres
Electrical System with multiplate with oil bath
Head Light 35/35 W
Horn 12V DC
Chassis Type Rectangular Pipe Ladder Chassis
Front Suspension Helical coil spring and hydraulic double acting shock absorber
Rear Suspension Helical coil spring and hydraulic double acting shock absorber
Front Tyre Size (4.5-10-8)pr cross
Rear Tyre Size (4.5-10-8)pr cross
Brakes Drum
Reserve Capacity 1 litres
Wheel Base 1820mm
Ground Clearance 130mm
Minimum Turning Radius 2.88m
Curb Weight 400kg
Maximum Payload 500kg
Fuel Consumption 30 to 32 kmpl (Under factory testing conditions)
Max Speed 60 kmph
Air Cleaner Oil Bath Type
Oil Filter Wire Mesh Type
Fuel Filter Paper Element Type
Capicity of Cooling system Air Cooled
Fuel Filter Paper Element Type
OVERALL DIMENSIONS
Overall Width 1385
Displacements 275 cc
Overall Length 2947
Overall height 2007
Wheel Track 1140
Wheel base 2000
Min. Ground Clearance 130
Max. GVW 900
Cargo Area (L x W x H) 1584 x 1384 x 406 mm
Oil Filter Spin On
Oil Quantity 1.7 Ltr.
Air Cleaner Dry Type
Engine Weight 30.5 kg.
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.

Lovson Pickup Highdeck


1234

SPECIFICATIONS
OVERALL DIMENSIONS
SPECIFICATIONS
Engine-Model No. 395cc BS III Diesel 435cc BS III Diesel
Type FOUR-STROKE, AIR COOLED, DIESEL FOUR-STROKE, AIR COOLED, DIESEL
Bore.MM 82 86
Stroke.MM 68 75
Maximum Net Power, HP AT R/Min 7.6 HP @3600 rpm 7.6 HP @3600 rpm
Maximum Net Torque, KG.M AT/MIN 17 Nm @2200 rpm 18 Nm @2400-2200 rpm
Engine Type Forced Air Cooler
Displacement 395 cc 436 cc
No. of Cylinders 1
Compression Ratio 18:1 19:1
Extra Specification
Ignition system CDI
Starting Electrical Start + Manual
Clutch Type Wet multidisc type
Transmission 4 Forward + 1 Reverse
Fuel tank capacity, litre Full 7.5 litres in reverse - 1.5 litres
Electrical System with multiplate with oil bath
Head Light 35/35 W
Horn 12V DC
Chassis Type Rectangular Pipe Ladder Chassis
Front Suspension Helical coil spring and hydraulic double acting shock absorber
Rear Suspension Helical coil spring and hydraulic double acting shock absorber
Front Tyre Size (4.5-10-8)pr cross
Rear Tyre Size (4.5-10-8)pr cross
Brakes Drum
Reserve Capacity 1 litres
Wheel Base 1820mm
Ground Clearance 130mm
Minimum Turning Radius 2.88m
Curb Weight 400kg
Maximum Payload 500kg
Fuel Consumption 30 to 32 kmpl (Under factory testing conditions)
Max Speed 60 kmph
Air Cleaner Oil Bath Type
Oil Filter Wire Mesh Type
Fuel Filter Paper Element Type
Capicity of Cooling system Air Cooled
Fuel Filter Paper Element Type
OVERALL DIMENSIONS
Overall Width 1385
Overall Length 2947
Displacements 275 cc
Overall height 2007
Wheel Track 1140
Wheel base 2000
Min. Ground Clearance 130
Max. GVW 900
Cargo Area (L x W x H) 1584 x 1384 x 1270 mm
Oil Filter Spin On
Oil Quantity 1.7 Ltr.
Air Cleaner Dry Type
Engine Weight 30.5 kg.
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.

Delivery Standard


1234

SPECIFICATIONS
OVERALL DIMENSIONS
SPECIFICATIONS
Engine-Model No. 395cc BS III Diesel 435cc BS III Diesel
Type FOUR-STROKE, AIR COOLED, DIESEL FOUR-STROKE, AIR COOLED, DIESEL
Bore.MM 82 64
Stroke.MM 86 68
Maximum Net Power, HP AT R/Min 11 HP @4400 rpm 7.5 HP @3600 rpm
Maximum Net Torque, KG.M AT/MIN 23.7 Nm @2800 rpm 17 Nm @2200 rpm
Engine Type Forced Air Cooler
Displacement 395 cc 436 cc
No. of Cylinders 1
Compression Ratio 18:1 19:1
Extra Specification
Ignition system CDI
Starting Electrical Start + Manual
Clutch Type Wet multidisc type
Transmission 4 Forward + 1 Reverse
Fuel tank capacity, litre Full 7.5 litres in reverse - 1.5 litres
Electrical System with multiplate with oil bath
Head Light 35/35 W
Horn 12V DC
Chassis Type Rectangular Pipe Ladder Chassis
Front Suspension Helical coil spring and hydraulic double acting shock absorber
Rear Suspension Helical coil spring and hydraulic double acting shock absorber
Front Tyre Size (4.5-10-8)pr cross
Rear Tyre Size (4.5-10-8)pr cross
Brakes Drum
Reserve Capacity 1 litres
Wheel Base 1820mm
Ground Clearance 130mm
Minimum Turning Radius 2.88m
Curb Weight 400kg
Maximum Payload 500kg
Fuel Consumption 22 +/-2 km/ltr / 36+/-2km/ltr
Max Speed 60 kmph
Air Cleaner Oil Bath Type
Oil Filter Spin On
Fuel Filter Paper Element Type
Capicity of Cooling system Forced Air Cooled
Fuel Filter Paper Element Type
OVERALL DIMENSIONS
Overall Width 1385
Displacements 338 cc
Overall Length 2947
Overall height 2007
Wheel Track 1140
Wheel base 2000
Min. Ground Clearance 130
Max. GVW 900
Cargo Area (L x W x H) 1584 x 1270 x 1270 mm
Oil Filter Spin On
Oil Quantity 1.5 Ltr.
Air Cleaner Dry Type
Engine Weight 30 kg
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.

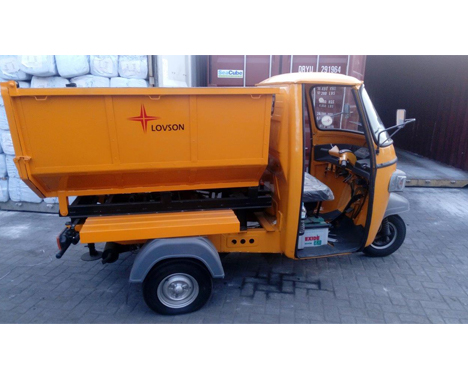

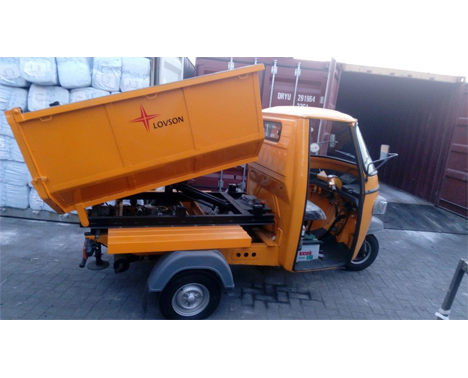

Tipper / Dumper Standard


1234

SPECIFICATIONS
OVERALL DIMENSIONS
SPECIFICATIONS
Engine-Model No. 395cc BS III Diesel 435cc BS III Diesel
Type FOUR-STROKE, AIR COOLED, DIESEL FOUR-STROKE, AIR COOLED, DIESEL
Bore.MM 82 64
Stroke.MM 86 68
Maximum Net Power, HP AT R/Min 11 HP @4400 rpm 7.5 HP @3600 rpm
Maximum Net Torque, KG.M AT/MIN 23.7 Nm @2800 rpm 17 Nm @2200 rpm
Engine Type Forced Air Cooler
Displacement 338 cc 395 cc
No. of Cylinders 1
Compression Ratio 8:1 18:1
Extra Specification
Ignition system CDI
Starting Electrical Start + Manual
Clutch Type Wet multidisc type
Transmission 4 Forward + 1 Reverse
Fuel tank capacity, litre Full 7.5 litres in reverse - 1.5 litres
Electrical System with multiplate with oil bath
Head Light 35/35 W
Horn 12V DC
Chassis Type Rectangular Pipe Ladder Chassis
Front Suspension Helical coil spring and hydraulic double acting shock absorber
Rear Suspension Helical coil spring and hydraulic double acting shock absorber
Front Tyre Size (4.5-10-8)pr cross
Rear Tyre Size (4.5-10-8)pr cross
Brakes Drum
Reserve Capacity 1 litres
Wheel Base 1820mm
Ground Clearance 130mm
Minimum Turning Radius 2.88m
Curb Weight 400kg
Maximum Payload 500kg
Fuel Consumption 22 +/-2 km/ltr / 36+/-2km/ltr
Max Speed 60 kmph
Air Cleaner Dry Type
Oil Filter Spin On
Fuel Filter Paper Element Type
Capicity of Cooling system Air Cooled
Fuel Filter Paper Element Type
OVERALL DIMENSIONS
Overall Width 1067
Overall Length 2947
Overall height 2829
