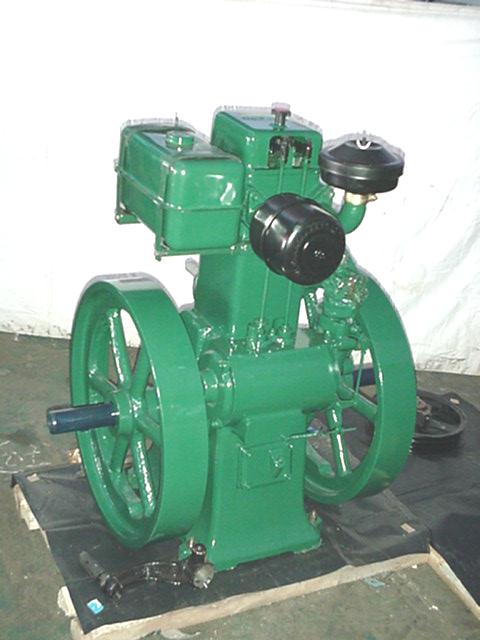

Slow Speed Diesel Engine
Type:- LOVSON Diesel Engine is SINGLE CYLINDER, vertical, totally enclosed compression ignition, four stroke cycle, cold starting diesel engine tested as per IS 11170-1985.
Cumbustion:-DIRECT INJECTION : cumbustion takes place in a cavity on the top of the Aluminum Alloy Piston in order to minimise power loss usually occuring because of gas leakage & heat loss, resulting in powerful performance, low fuel consumption & easy start.
Rotation:-Standard clockwise rotation when observed from flywheel end, keeping Air & Exhaust on the left hand side.
Lubrication:-Engines internal moving parts are partially lubricated by SPLASH SYSTEM of lubrication. Crank Pin & C.R. Bearings are forced lubricated by plunger type lubricating Oil Pump.
Cooling:- Engine’s cooling is arranged by run through water supply. A Radiator or Cooling tank can be arranged if required.
Balancing:-Engine is balanced with two balance weights bolted on crank shaft. Flywheel is balanced for longer life of moving parts.
Drive:-Standard power take off is from left hand side flywheel end when viewed from Air & Exhaust side.
Fuel System:-Fuel is supplied to the fuel pump by gravity feed through wire mesh filter in fuel tank & efficient paper element filter in fuel filter.
| MODEL: | LG-6 | LG-8 | LG-10 | LG-10 SUPER | LG-12 | LG-10 SANDO | LG-14 SANDO |
| BORE X STROKE MM: | 114.3x130L | 114.3x130L | 120x130L | 127x130L | 127x130L | 130x146.5L | 130x146.5L |
| DISPLACEMENT VOLUME CC: | 1334 | 1334 | 1471 | 1647 | 1647 | 1945 | 1945 |
| RATED OUTPUT :kw/RPM AS PER IS:11170-1985:hp/RPM |
4.40/750 (6/750) |
5.90/900 8/900 |
7.35/1000 10/1000 |
7.35/950 10/950 |
8.80/1050 12/1050 |
7.35/800 10/800 |
10.30/1000 14/1000 |
| SPECIFIC FUEL :g/kwh CONSUMPTION (SFC):g/hph |
235 g/kwh 173 g/hph |
||||||
| TORQUE AT CRANKSHAFT DRIVE kNm Kgm RPM |
0.056 5.73 650 |
0.062 6.37 850 |
0.069 7.17 1000 |
0.073 7.54 1000 |
0.079 8.19 900 |
0.087 8.96 1000 |
0.097 10.03 1000 |
| COMPRESSION RATIO: | 17:5:1 | ||||||
| STARTING SYSTEM: | BY HAND CRANKING FROM FUEL PUMP SIDE / ELECTRIC START OPTION AVAILABLE | ||||||
| FUEL: | HIGH SPEED DIESEL [HSD] | ||||||
| LUBRICATING OIL: | SAE-30 / SAE-40 OR ANY EQUIVALENT GRADE | ||||||
| LUBRICATING OIL:SUMP CAPACITY(Ltr) | 4.25 lts. | ||||||
| LUBE OIL CONSUMPTION: | APPX 1.0 to 1.5% OF SFC | ||||||
| FOUNDATION BOLT SIZE MM: | 260x260 | ||||||
| CRANKSHAFT CENTRE HEIGHT MM: | 283 | 283 | 283 | 283 | 283 | 317.50 | 317.50 |
| GOVERNING | CLASS B1 AS PER IS : 10000 (PART 7) 1980 | ||||||
| NET WT. KGS: | 255 | 255 | 270 | 290 | 290 | 400 | 400 |
| GROSS WT. KGS: | 330 | 330 | 345 | 365 | 365 | 500 | 500 |
| WOODEN CASE SIZE MM: | 900 x 680 x 1020 | 1050 x 750 x 1150mm | |||||
