15 H.P. SERIES

Engine:
No of cylinder	1
Capacity	624 CC
Rated Speed	2600 RPM
Cooling System	Air Cooled
Bore/Stroke	85/110mm
Dimension:
Size(LxWxH)mm	2510x1040x1700 mm
Weight	780 kg
Wheel Base	1450 mm
Track Width	825(950 Adjustable)
Tyre:
Front	5.20 x 14
Rear	8.00 x 18
Transmission:
Type	Synchromesh
NO. of Gear	8 Forward, 2 Reverse
P.T.O Speed	4 + 1
Speed Range	19 km/hr
Type of Brake	Dry Internal Exp, Shoe(Water proof)
Minimum Turning Redius (Mtrs.)	2.2(with Brake),2.7(Without Brake)

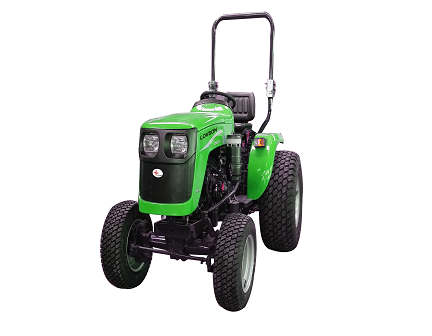

20 H.P. SERIES

Engine:
No of cylinder	1
Capacity	895 CC
Rated Speed	2300 RPM
Cooling System	Water Cooled
Bore/Stroke	100/114 mm
Dimension:
Size(LxWxH)mm	2600 x 1040 x 1700 mm
Weight	885 kg
Wheel Base	1500 mm
Track Width	825(950 Adjustable)
Tyre:
Front	5.20 x 14
Rear	8.00 x 18
Transmission:
Type	Synchromesh
NO. of Gear	8 Forward, 2 Reverse
P.T.O Speed	4 + 1
Speed Range	2.25 to 20 km/hr
Type of Brake	Dry Internal Exp, Shoe(Water proof)
Minimum Turning Redius (Mtrs.)	2.2(with Brake),2.7(Without Brake)

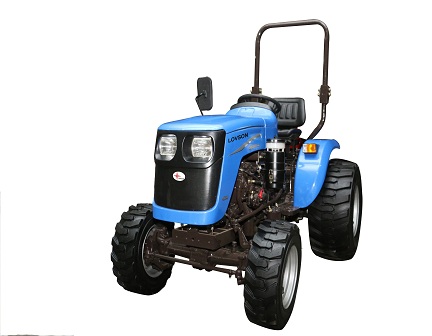

25 H.P. SERIES

Engine:
No of cylinder	2
Capacity	1290 CC
Rated Speed	2200 RPM
Cooling System	Water Cooled
Bore/Stroke	95/91 mm
Dimension:
Size(LxWxH)mm	2625 x 1040 x 1700 mm
Weight	890 kg
Wheel Base	1550 mm
Track Width	825(950 Adjustable)
Tyre:
Front	5.20 x 14
Rear	8.00 x 18
Transmission:
Type	Synchromesh
NO. of Gear	8 Forward, 2 Reverse
P.T.O Speed	4 + 1
Speed Range	20 km/hr / 22 km/hr
Type of Brake	Dry Internal Exp, Shoe(Water proof)
Minimum Turning Redius (Mtrs.)	2.2(with Brake),2.7(Without Brake)

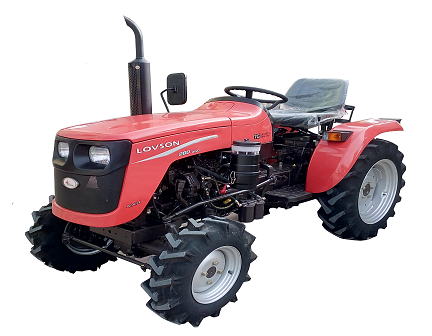

30 HP Small Tractors Series

Engine:
Power	30 hp. Category
No of cylinder	2
Capacity	1290
Rated Speed	2500
Cooling System	Water Cooled
Bore/Stroke	95/91
Dimension:
Size(LxWxH)mm	2620 x 1220 x 1800 mm
Weight	980 kg
Wheel Base	1545 mm
Track Width	960
Tyre:
Front	6.00 x 16
Rear	9.5 x 24
Transmission:
Type	Synchromesh
NO. of Gear	8 Forward, 2 Reverse
P.T.O Speed	4 + 1
Speed Range	28 km/hr
Type of Brake	Dry Internal Exp, Shoe(Water proof)
